8mm Micro Stepper Motor

Name: 8mm Micro Stepper Motor
Brand: Changzhou Vic-Tech Motor Technology Co., Ltd.
SKU: VSM08284
Price: 4.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: V-motor

Certification: RoHS

Model Number: VSM08284

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: US$2~7

Packaging Details: The blister box is specially customized for the product, which can properly protect the product. The outer packaging of the sample stage is a carton box, and the batch will be palletized as necessary

Delivery Time: 3~15 days

Payment Terms: T/T, D/P

Supply Ability: 100000/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                8mm Micro Stepper Motor, 3.5g.cm Micro Stepper Motor, 5VDC Small Stepper Motor


Phase:	2 Phases	Type:	Small Stepper Motor
Step Angle(degrees):	18°	Voltage:	5V
Magnet Type:	Rare Earth Permanent Magnet	Resistance:	16 Ohm

Phase:	2 Phases
Type:	Small Stepper Motor
Step Angle(degrees):	18°
Voltage:	5V
Magnet Type:	Rare Earth Permanent Magnet
Resistance:	16 Ohm

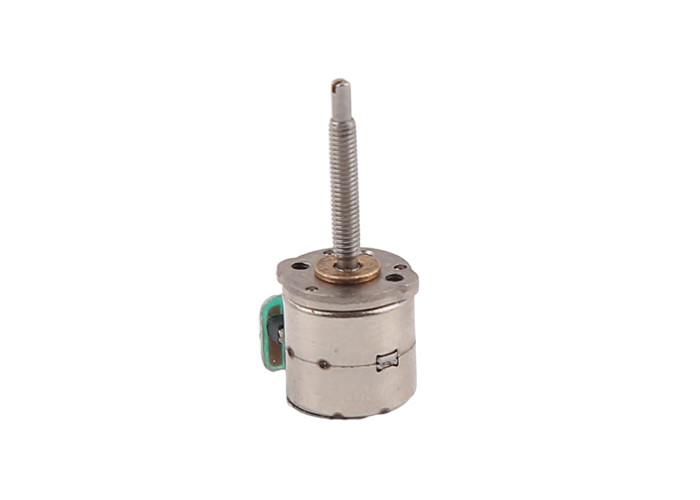

8mm Micro Stepper Motor

8mm Torque 3.5g.cm 2 Phase 8mm Small Permanent Magnet Stepper Motor

VSM08284 is a precision miniature PM stepping motor with small size, large torque and high progress.

This small motor is mainly used in cameras, lenses, optical instruments and other fields.

As an actuator, stepper motor is one of the key products of mechatronics and is widely used in various automation control systems. With the development of microelectronics and computer technology, the demand for stepper motors is increasing day by day, and they are used in various fields of national economy.

6mm micro stepper motor parameter sheet:

Product name	8MM MICRO STEPPER MOTOR
Model	VSM008284
Rated voltage	5 V DC
Coil resistance	16Ω±10%
No.of phases	2 phases
Step angle	18°/step
Max.Startiong frequency	800 PPS min.(AT 5.0 V DC)
Max.slewing frequency	2000 PPS min(AT 5.0 V DC)
Pull in torque	2.8 gf-cm min(AT 480 PPS,5.0 V DC)
Pull out torque	3.8 gf-cm min(AT 480 PPS,5.0 V DC)
INSULATION CLASS	CLASS E FPR COILS
Insulation strength	100 V AC/1S 3mA Max
Insulation resistance	1M Ω(DC 100V)
Operating temperature range	-30~+70 ℃
