Large Thrust Slider Stepper Motor 25mm 12 VDC For Beauty Equipment

Product Details

Place of Origin: China

Brand Name: V-motor

Certification: RoHS

Model Number: SM20-63L

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: US$10~30

Packaging Details: The foam box is properly placed for the product, and the outside is wrapped with a carton and plastic film, and the bulk product is handled with a plastic pallet for easy transportation and product protection.

Delivery Time: 15 days

Payment Terms: L/C, T/T

Supply Ability: 100000/month

Get Best Price
Highlight:

Large Thrust Slider Stepper Motor

,

Slider Stepper Motor 25mm

,

12v DC Stepper Motor RoHS

Motor Size:
15mm (optional 6 8 10 20 25)
Step Angle:
18 Degree
Motor Type:
Stepper Motor With Lead Screw
Movement Type:
Linear (forward And Backward )
Lead Pitch:
M3 Pitch 0.5mm
Driving Voltage:
12 VDC
Coil Resistance:
30 Ohm (can Customization)
Driving Method:
Bi-polar 2-2 Phase
Motor Size:
15mm (optional 6 8 10 20 25)
Step Angle:
18 Degree
Motor Type:
Stepper Motor With Lead Screw
Movement Type:
Linear (forward And Backward )
Lead Pitch:
M3 Pitch 0.5mm
Driving Voltage:
12 VDC
Coil Resistance:
30 Ohm (can Customization)
Driving Method:
Bi-polar 2-2 Phase
Large Thrust Slider Stepper Motor 25mm 12 VDC For Beauty Equipment

Large Thrust,And Accurate Positioning 20mm M3 Lead Screw Slider Stepper Motor For Beauty And Medical And Xy Axis

20mm M3 lead screw slider stepper motor features:





This is a type of stepper motor equipped with a bracket, a lead screw, and a relative motion slider.

Because the output shaft of the motor is a screw, during the rotation of the screw, the screw drives the slider to move forward and backward. In this way, actions such as advancing and pulling back can be conveniently provided. In addition, the stepping motor can accurately control the rotation speed, the number of rotations, etc., which also determines the movement speed of the slider, and the movement position is accurate and controllable. And the position accuracy can be controlled to within 0.05mm.

Due to the above characteristics, such motors are widely used in beauty equipment, medical equipment, automatic vending machines, rapid inspection and other fields.





Main Application

1) vending machine

2) Optical instruments

3) Precision medical devices

4) beauty equipment

Other precise control application





20mm M3 lead screw slider stepper motor Specifications:



Model No. SM20-63L
Motor type Linear stepper motor
Phase No. 2 phases
Step angle 18 degrees
Phase resistance 30 Ohms/phase
Excitation method 2-2 bipolar drive
Rated voltage 5 - 12 V DC
Lead screw type M3*0.5Pitch thread
Stroke 63mm
Pull-out thrust Over 500 gf at 700 PPS
Max response frequency

Over 1100 PPS







Drawing of 20mm plastic slider stepper motor with 63mm stroke:



Large Thrust Slider Stepper Motor 25mm 12 VDC For Beauty Equipment 0

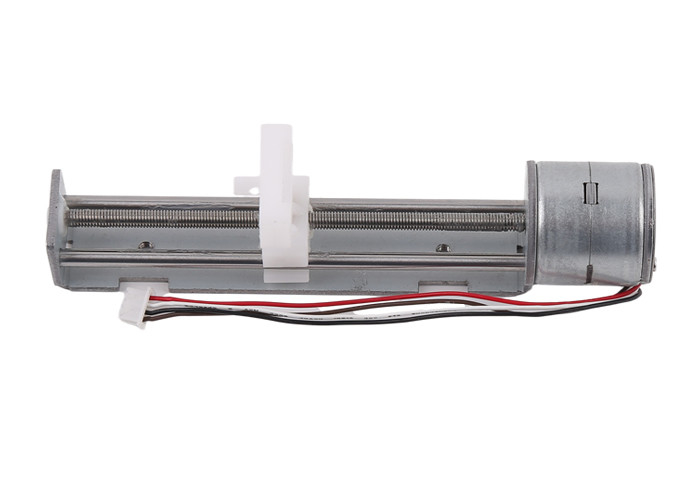

Product display for 20mm plastic slider stepper motor:

Large Thrust Slider Stepper Motor 25mm 12 VDC For Beauty Equipment 1



Customers can customize content:



1. In terms of product outer diameter, different sizes such as 6 8 10 15 20 25mm can be selected according to the customer's use environment, space strength, etc.



2. The outlet position of the motor can be freely selected within a 360-degree range, so as to meet the installation requirements in the best state. At the same time, Connector can choose lead wire, PCB, FPC bare pin.



2. According to the requirements of customers, the effective stroke of the motor can be customized within a certain range, mainly considering the diameter and length of the screw,.

usually the maximum length of the M2 screw can be 50mm, the M3 screw can be 100mm, and the M4 screw can be 100mm. Can do 150mm. The use of a lead screw with an excessively large diameter for a small motor consumes a lot of power, so comprehensive consideration should be taken when selecting a motor.



4. The material of the slider is generally made of plastic, which is easy to form and economical.

When the customer has special use environment and requirements, the slider can also be made of metal parts.

Of course, the cost will be relatively high, which is determined according to the customer's requirements for the shape and size of the slider.
