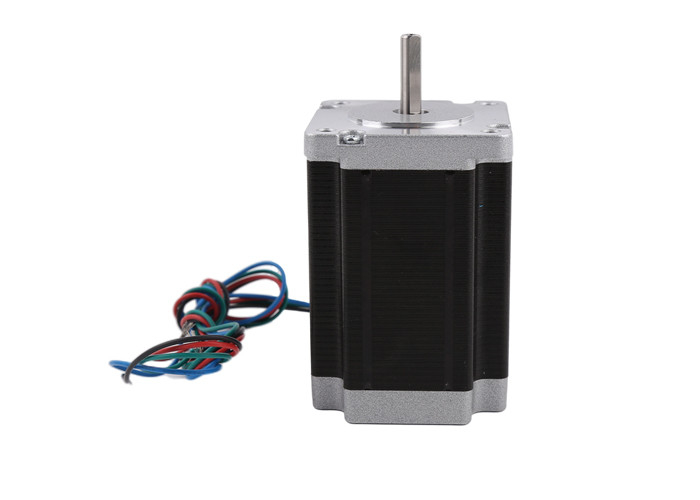

NEMA23 Two Phase Hybrid Stepper Motor 57mm Multiple Height

Product Details

Place of Origin: China

Brand Name: Vic-Tech

Certification: RoHS

Model Number: 57HS series

Payment & Shipping Terms

Minimum Order Quantity: 1Unit

Price: $10~$30/Unit

Packaging Details: The product is packed with pearl cotton, and the outside is in a carton.

Delivery Time: 10~20 days after the sample fee is paid

Payment Terms: T/T, Paypal, Credit card

Supply Ability: 10000 pc/Month

Get Best Price
Highlight:

Two Phase Hybrid Stepper Motor

,

Nema 23 Hybrid Stepper Motor

,

57mm Stepper Motor

Motor Type:
23 Nema Stepper Motor
Motor Size:
57mm (NEMA23)
Step Angle:
1.8 Degrees
Motor Height:
42 / 51 / 65/ 76mm
Output Shaft Type:
D Shaft
Shaft Diameter:
8mm
Motor Type:
23 Nema Stepper Motor
Motor Size:
57mm (NEMA23)
Step Angle:
1.8 Degrees
Motor Height:
42 / 51 / 65/ 76mm
Output Shaft Type:
D Shaft
Shaft Diameter:
8mm
NEMA23 Two Phase Hybrid Stepper Motor 57mm Multiple Height

High torque multiple height NEMA23 57mm two phase hybrid stepper motor



Description:

This is NEMA23 57mm hybrid stepper motor.

We have different motor height for you to choose, from 42mm height to 101mm height.

Motor’s weight and torque is related to its height.

Motor’s standard output shaft is D shaft shaft, it can also be replaced with trapezoidal lead screw shaft.

If you want gearbox motor, this motor can also attach a gearbox, up to your choice.





Motor parameters:

Motor length

mm

Holding torque

N*m

Rate current

A/phase

Resistance

Ω/phase

Inductance

Mh/phase



Rotational inertia

g*cm

Weight

KG

42 0.6 1 4.2 8.9 140 0.46
51 1 2 1.5 4.3 240 0.64
65 1.7 3 0.9 2.7 350 0.85
76 2 4 0.6 2.4 480 1.1
101 3 5 0.5 2.3 720 1.5



Design drawing:

NEMA23 Two Phase Hybrid Stepper Motor 57mm Multiple Height 0



Product display:

NEMA23 Two Phase Hybrid Stepper Motor 57mm Multiple Height 1





Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.





Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life



Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)

NEMA23 Two Phase Hybrid Stepper Motor 57mm Multiple Height 2
