20BY45-67 Permanent Magnet Stepper Motor PM 20mm For Industrial

Name: 20BY45-67 Permanent Magnet Stepper Motor PM 20mm For Industrial
Brand: Changzhou Vic-Tech Motor Technology Co., Ltd.
SKU: 20BY45-67
Price: 2.85 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: V-motor

Certification: RoHS

Model Number: 20BY45-67

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: US$1.85~4

Packaging Details: with carton

Delivery Time: 3~15 days

Payment Terms: L/C, D/P

Supply Ability: 100000/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                20BY45-67 Permanent Magnet Stepper Motor, Permanent Magnet Stepper Motor PM, Permanent Magnet Stepper Motor 20mm


Phase:	2	Type:	Permanent Magnet Stepper Motor
Step Angle(degrees):	18°	Frame Size:	Dia.20MMXL19.1mm
Voltage:	24V	Current / Phase:	0.5A
Weight:	20g

Phase:	2
Type:	Permanent Magnet Stepper Motor
Step Angle(degrees):	18°
Frame Size:	Dia.20MMXL19.1mm
Voltage:	24V
Current / Phase:	0.5A
Weight:	20g

20BY45-67 Permanent Magnet Stepper Motor PM 20mm For Industrial

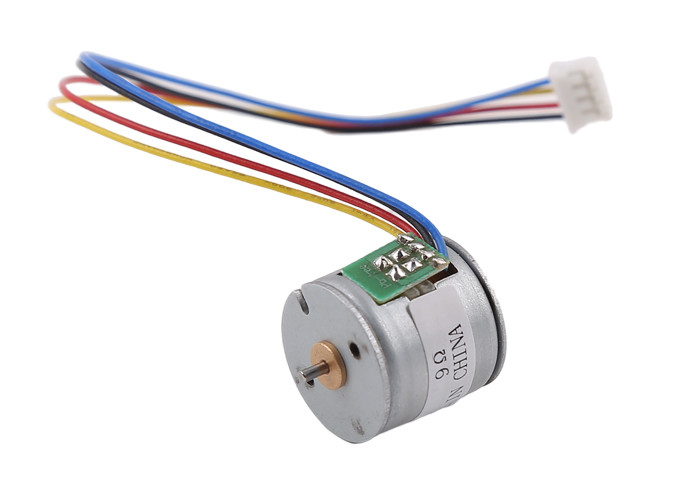

20BY45-67 20mm PM stepper motor

20BY45-67 Permanent Magnet Stepper Motor PM 20mm For Industrial 0

Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements
Precise control of the rotating position of the field.

It is a mini stepper motor, diameter is 20mm,a torque of 60gf.cm and max speed can achieve 3000rpm.

Therefore, the product can be used where precise control of the position is required. Generally can be used in medical equipment, printers, automation equipment, robots, etc.

PM stepper motor parameters:

PRODUCT NAME	20 stepper motor
MODEL	20BY45-67
RESISTANCE	200 Ω±10%
VOITAGE	24VDC
Step angle	18°±7%
Detent Torque	≤83g.cm
OEM & ODM SERVICE	AVAILABLE

PM stepper motor outdrawing:

20BY45-67 Permanent Magnet Stepper Motor PM 20mm For Industrial 1

Product display:

20BY45-67 Permanent Magnet Stepper Motor PM 20mm For Industrial 2

This product is mainly used for printers, fax machines, photocopiers, camera devices, monitoring pan-tilts, etc.
The output part can use various methods such as gears, pulleys, and V-shaped groove wheels.
The shape of the mounting plate and the outlet can be adjusted according to customer needs!
