Linear Actuator Permanent Magnet Stepper Motor 10mm With Lead Screw

VSM1068 Linear Actuator Stepping Motor Permanent Magnet 10mm With Lead Screw

Description:

This VSM1068 is a 10mm diameter stepper motor with M2 lead screw.

It is 0.4 mm pitch regular M2 lead screw.

This motor does not have slider, and customers need to design a slider to match it in order to make it work.

We also have other motors with slider, which can do linear movement directly.

If customers do not want to design a slider, and motors with slider is more convenient to use.

This motor is bare pins, we can solder PCB/FPC if customers need it.

Parameters:

Design drawing:

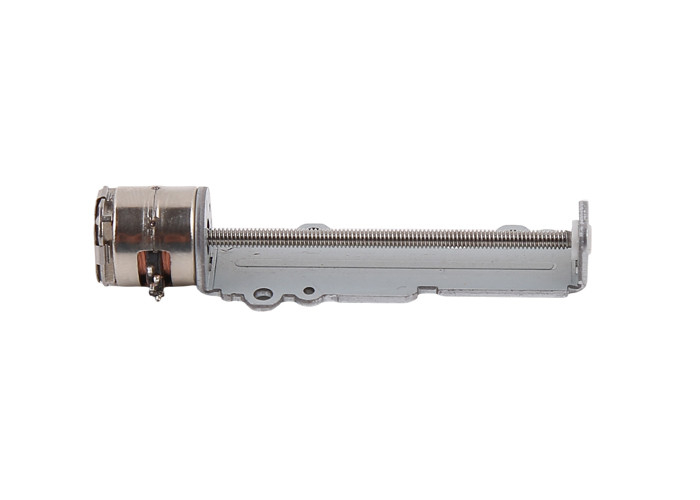

Product display:

About linear stepper motor with slider:

Our slider motor is a full set of assembly including motor + lead screw + bracket + slider.

Motor’s step angle is generally 18°/step, which means 20 steps for each turn.

When motor rotates one turn, slider moves one lead.

For single start lead screws: pitch =lead.

So the step length is (step length means linear movement slider travels, when the stepper motor take exactly one step):

Lead screw lead/steps of each rotation

For example if lead screw is M2*0.4P (0.4mm pitch regular M2 lead screw), step angle of the motor is 18°, step length of this motor is 0.4mm/20=0.02mm/step.

Also, lead screw length is customizable, and we also need to adjust bracket’s design, if you customize lead screw length.

Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.

Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life
