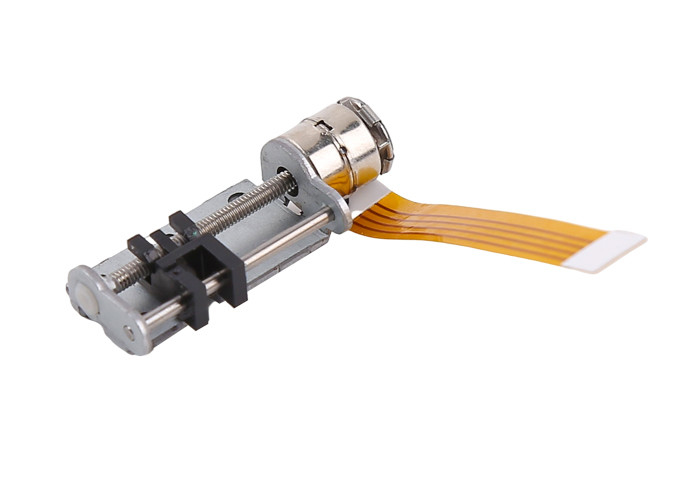

8mm 5V mini camera Micro Linear Motor 40mm stroke

8mm micro slider screw stepper motor 3.3V DC pm stepper motor of Camera Lens linear stepper motor:

VSM0806 is a special precision stepping motor, with support and guide rail (when the motor rotates, the guide rail will move). The moving speed can be controlled by pulse frequency, and the moving distance can be controlled by pulse number. For this typical motor, when the motor drives the 2-2 phase, one pulse makes the lead 0.02mm.
The diameter of the motor is 8mm. Because of its small size, high accuracy, easy control and other excellent characteristics, this micro stepping motor is widely used in cameras, optical instruments, lenses, precision medical equipment, automatic door locks and other fields.
The motor input part is FPC, but it can be changed to the form of connecting wire, PIN pin, PCB, etc. according to customer requirements.
The mounting bracket can be replaced according to customer requirements.
In addition, the stepper motor can accurately control the speed and number of revolutions, which also determines the moving speed of the slider, and the moving position is accurate and controllable. The position accuracy can be controlled within 0.05mm.

Main Application

1) vending machine

2) Optical instruments

3) Precision medical devices

4) beauty equipment

Other precise control application

8mm M2 lead screw slider stepper motor Specifications:

Drawing of 8mm plastic slider stepper motor with 10mm stroke:

TYPE of WIRE CONNECT:

Motor input method with Pin type

, FPC, PCB, Lead wire etc. These can be customized according to customer needs.

Product display for 8 mm plastic slider stepper motor:

8mm mini linear motor 3.3VDC micro slider screw stepper motor of Camera Lens

Customers can customize content:

1. In terms of product outer diameter, different sizes such as 6 8 10 15 20 25mm can be selected according to the customer's use environment, space strength, etc.

2. The outlet position of the motor can be freely selected within a 360-degree range, so as to meet the installation requirements in the best state. At the same time, Connector can choose lead wire, PCB, FPC bare pin.

2. According to the requirements of customers, the effective stroke of the motor can be customized within a certain range, mainly considering the diameter and length of the screw,.

usually the maximum length of the M2 screw can be 50mm, the M3 screw can be 100mm, and the M4 screw can be 100mm. Can do 150mm. The use of a lead screw with an excessively large diameter for a small motor consumes a lot of power, so comprehensive consideration should be taken when selecting a motor.

4. The material of the slider is generally made of plastic, which is easy to form and economical.

When the customer has special use environment and requirements, the slider can also be made of metal parts.

Of course, the cost will be relatively high, which is determined according to the customer's requirements for the shape and size of the slider.
