7080rpm 24V Brushless DC Electric Motor ROV Thruster Diving Equipment

Name: 7080rpm 24V Brushless DC Electric Motor ROV Thruster Diving Equipment
Brand: Changzhou Vic-Tech Motor Technology Co., Ltd.
SKU: SW2820
Price: 38.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: V-motor

Certification: RoHS

Model Number: SW2820

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: US$36.5~40.9

Packaging Details: With carton

Delivery Time: 15 days

Payment Terms: T/T, D/P

Supply Ability: 100000/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                7080rpm Brushless DC Electric Motor, 24V Brushless DC Electric Motor, Underwater Electric Thruster Motor


Voltage:	24V	No-load Current:	0.3A
No-load Speed:	7080rpm	Rated Load Current:	13.5A
Stall Torque:	1079mNm

Voltage:	24V
No-load Current:	0.3A
No-load Speed:	7080rpm
Rated Load Current:	13.5A
Stall Torque:	1079mNm

7080rpm 24V Brushless DC Electric Motor ROV Thruster Diving Equipment

SW2820 ROV thruster diving equipment model submarine brushless motor

1. Imported stainless steel bearing, anti-rust, anti-corrosion and salt spray test can reach more than 192 hours, far higher than IP68 waterproof level.
2. Independent PCB patent design, PCB and lead wire extraction are built into the motor, which can be used to package and solidify the lead wire of the welding point for customers and directly adjust the wire.
3. The shaft is made of special stainless steel, heat treatment and other special anti-rust treatment.
4. The magnetic disk is made of ndfeb high temperature resistant material, and the surface is specially treated with waterproof and anti-corrosion.
5. The stator is made of imported materials from kawasaki, Japan, and its surface has been specially treated with waterproof and anti-corrosion.
6. Balance test is carried out before each motor leaves the factory, and the balance is less than 10mg.

7.In order to facilitate the customer research and development and testing of aquatic and underwater equipment products, our r&d personnel specially designed and printed this type of paddle according to the independent patent design of fluid mechanics, so as to provide customers with this need to carry out the supporting test of SW2820 underwater motor.

PRODUCT NAME	Underwater brushless motor
MODEL	SW2820
VOLTAGE	24V
NO-LOAD CURRENT	0.3A
NO-LOAD SPEED	7080rpm
RATED LOAD CURRENT	13.5A
RATED LOAD SPEED	3540rpm
STALL CURRENT	25A
STALL TORQUE	1079mNm

Performance parameter table of the same product

Model	Voltage(V)		No Load		Rated Load				Stall
	Operating Range	Rated	Speed (rpm)	Current (A)	Torque (mNm)	Speed (rpm)	Current (A)	Output P. (W)	Torque (mNm)	Current (A)
2820	24~36	36	10560	1	724	4631	16	400W	1650	35A

Note: the above rated load is mainly used in underwater

Product display:

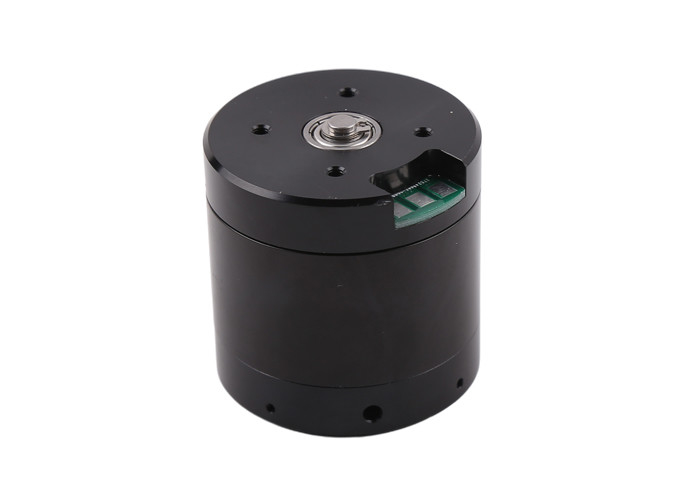

7080rpm 24V Brushless DC Electric Motor ROV Thruster Diving Equipment 0
