Product Details
Place of Origin: China
Brand Name: Vic-Tech
Certification: RoHS
Model Number: 20BYGH29-EN
Payment & Shipping Terms
Minimum Order Quantity: 1Unit
Price: $25~$53/Unit
Packaging Details: The product is packed with pearl cotton, and the outside is in a carton.
Delivery Time: 10~20 days after the sample fee is paid
Payment Terms: T/T, Paypal, Credit card
Supply Ability: 10000 pc/Month
Motor Type: |
Hybrid Stepper Motor + Encoder |
Motor Size: |
20 Mm |
Lead Screw Type: |
Tr3.5x4 |
Encoder Type: |
Optical Encoder |
Encoder Resolution: |
1000 CPR |
Step Angle: |
1.8°/step |
Motor Type: |
Hybrid Stepper Motor + Encoder |
Motor Size: |
20 Mm |
Lead Screw Type: |
Tr3.5x4 |
Encoder Type: |
Optical Encoder |
Encoder Resolution: |
1000 CPR |
Step Angle: |
1.8°/step |

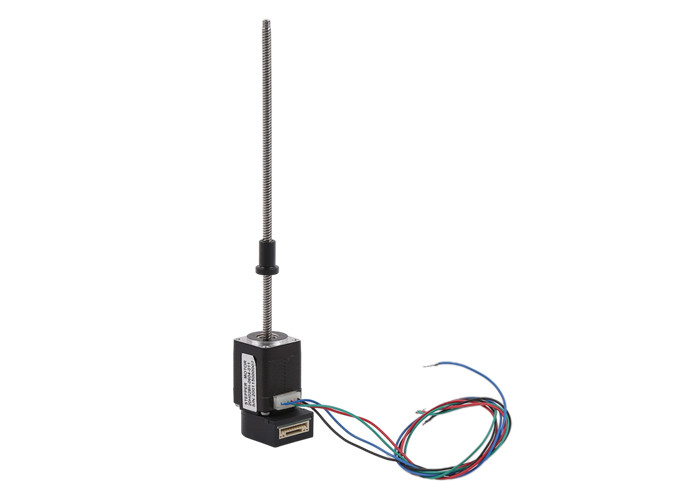

Tr3.5 trapezoidal lead screw 20mm NEMA 8 hybrid stepper motor with optical encoder
Description:
This is a 20mm hybrid stepper motor (NEMA 8) attached with trapezoidal screw.
Trapezoidal screw is Tr3.5x4, lead screw pitch is 1mm, so lead is 4mm.
Also this motor has an optical encoder at it bottom.
We have different resolution for you to choose.
Standard resolution is 1000 CPR (Changes Per Resolution)
If customers do not require encoder, we can remove encoder as well.
Motor parameters:
| Motor type | NEMA hybrid motor + encoder |
| Lead screw | Tr3.5x4 trapezoidal screw |
| Lead screw pitch | 1mm |
| Step angle | 1.8° |
| Encoder type | Optical Encoder |
| Encoder resolution | 1000 CPR |
| Resistance | 3.7Ω/phase |
| Step length | 0.02mm/step |
| Weight | 60 g |
| Phase current | 0.6A/phase |
Design drawing:
Product display:
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
FAQ:
1. Are you a manufacturer or a trader?
We are a manufacturer. We produce motors ourselves.
2. Where is your factory? Can we visit your factory?
Our factory is located in Changzhou city. Feel free to visit us if you want.
3. Do you provide customized samples/ free samples?
We are able to do customization on samples, and it cost extra customization cost.
No, we don’t send free samples.
4. What’s the lead time on samples?
For samples in stock, lead time is within 3 days.
For samples not in stock, lead time is about 15 days.
For customized samples, lead time is about 25 to 30 days.
5. What customization service do you provide?
We have a developing team for over 20 years experience.
We provide customization service on all sorts of motor’s components.
From motor’s slider, lead screw, gearboxes design.
To cable length, connector type, and FPC design.
