Product Details
Place of Origin: China
Brand Name: V-motor
Certification: RoHS
Model Number: 20BYJ45
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: US$1.5~4.0
Packaging Details: Samples are packaged in small cartons and pearl cotton, and bulk products are in blister boxes and cartons, and when necessary, use pallets (when the quantity is large).
Delivery Time: 10~20 days after the sample fee is paid
Payment Terms: T/T, L/C
Supply Ability: 100000/month
Type: |
Permanent Magnet Geared Stepper Motor |
Phase: |
2PHASE |
Step Angle: |
18 ° |
Motor Size: |
20 Mm |
Driving Method: |
Bipolar |
Resistance: |
100ohm/phase |
Type: |
Permanent Magnet Geared Stepper Motor |
Phase: |
2PHASE |
Step Angle: |
18 ° |
Motor Size: |
20 Mm |
Driving Method: |
Bipolar |
Resistance: |
100ohm/phase |

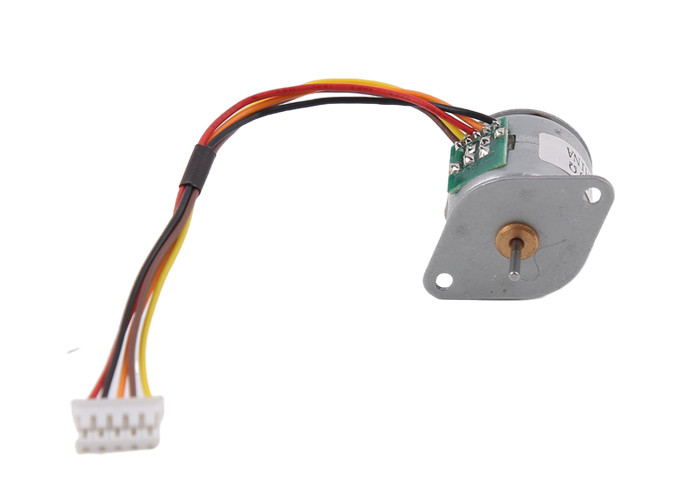

20BY45 motor, where 20 represents a motor diameter of 20mm and 45 represents a rotation of 4 * 5=20 steps.
This 20mm permanent magnet stepper motor has an 18 degree step angle.
It has high reliability and low price, and its torque is higher compared to 15mm motors. Therefore, this type of motor is commonly used in electrical products such as printers.
Its standard output shaft is a 9mm long circular shaft.
If the customer wants to adjust the length of the shaft or change the length of the motor to a guide screw, we can do so. (M3 guide screw is commonly used by us)
Motor parameters:
| Motor type | Bipolar | Resistance | 100ohm/phase | Step angle | 18°/step |
| Voltage | 12V DC | Output shaft | 9mm (customizable) | Driving mode | 2-2 |
| Max Starting frequency | 900Hz(Min) | Max response frequency | 1200Hz(Min) | Pull-out torque |
25 g*cm (600 PPS) |
