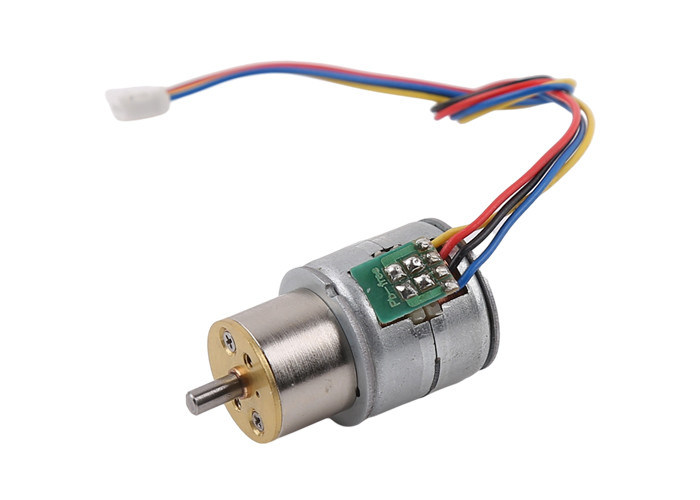

20mm Diameter Geared Stepper Motor Micro Degree 6VDC 2 Phase Step Motor
20mm High torque 12V cylinder gearbox D output shaft PM stepper motor
Description:
20mm micro geared stepper motor
VSM20-MG 20mm stepper motor is composed of a miniature stepper motor with an outer diameter of 20mm and a precision metal gearbox. The deceleration ratio can be customized according to the customer's needs.
The deceleration ratio of this image is 1:35, and the torque is 800g.cm at 20RPM.This series of stepper motor deceleration ratio has:1:3 1:7 1:10 1:16 1:17 1:20 1:30 1:35 1:50 1:63 1:70 1:86 1:115 1:150 1:210 1:250 1:360
The basic stepping Angle of the motor is 18 degrees, which is 20 steps per lap. Combined with the deceleration effect of the reduction gearbox, the rotation Angle resolution of the final motor can reach 0.05~6 degrees.
The customer can select the speed reduction ratio according to different torque speed requirements, and at the same time, the appropriate driving frequency of the stepper motor can achieve the determined speed and torque.
Please feel free to contact us if you are interested in buying few samples to test.
Motor Parameters:
| Model No. | SM20L-13GR-10G-7D |
| Motor type | 20mm PM motor(Bipolar) |
| Gearbox type | 13GR cylinder gearbox |
| Phase No. | 2 phases (4 wires) |
| Step angle | 18°/gear ratio |
| Coil resistance | 10Ω/phase |
| GEAR RATIO | 1:3~360 |
| Output shaft | 3mm D2.5 shaft |
| RATED REVOLUTION | 5~200(rpm) |
| BOUNDARGDIMENSION | DIA20*L29.8(mm) |
Gearbox Parameters:
| Gear ratio | 10:1 | 16:1 | 20:1 | 30:1 | 35:1 | 39:1 | 50:1 | 66:1 |
| Precise ratio | 9.952 | 15.955 | 20.622 | 29.806 | 35.337 | 38.889 | 49.778 | 66.311 |
| Tooth number | 14 | 20 | 18 | 14 | 18 | 18 | 15 | 18 |
| Gear levels | 2 | 4 | 4 | 3 | 4 | 4 | 4 | 4 |
| Efficiency | 80% | 64% | 64% | 71% | 64% | 64% | 64% | 64% |
| Gear ratio | 87:1 | 102:1 | 153:1 | 169:1 | 210:1 | 243:1 | 297:1 | 350:1 |
| Precise ratio | 87.303 | 101.821 | 153.125 | 169.383 | 209.402 | 243.158 | 297.071 | 347.972 |
| Tooth number | 15 | 14 | 16 | 15 | 19 | 15 | 15 | 14 |
| Gear levels | 4 | 4 | 5 | 5 | 5 | 5 | 5 | 5 |
| Efficiency | 64% | 64% | 58% | 58% | 58% | 58% | 58% | 58% |
Design drawing:
Product display:
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
