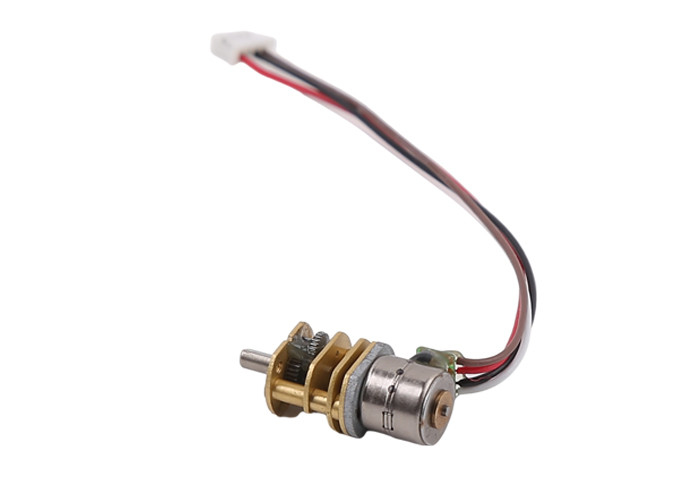

Small sized SM08-GB10 8 mm diameter permanent magnet stepper motor with 10*8 mm gearbox
Description:
This SM08-GB10 motor is a 8mm motor attached with a 10*8mm gearbox (GB10)
We have different gear ratios for you to choose.
With bigger ratio, motor’s torque is higher, and motor’s speed is slower.
Please confirm gear ratio before your order.
For output shaft, we have two different types of standard shaft: D shaft and lead screw shaft.
If customers require special shaft type, we can also do that, but it cost extra customization fee.
Motor Parameters:
| Model No. | SM08-GB10 |
| Motor type | 8mm PM stepper motor |
| Gearbox type | GB10 (10*8mm) |
| Step angle | 18°/step |
| Coil resistance | 40Ω/step |
| Output shaft | D shaft/lead screw shaft |
| Phase No. | 2 phases (4 wires) |
| Connector type | Molex 51021-0400 (1.25mm pitch) |
Gearbox Parameters:
| Gear ratio | 20:1 | 50:1 | 100:1 | 250:1 |
| Precise ratio | 20.313 | 50.312 | 99.531 | 249.943 |
| Tooth number | 14 | 14 | 14 | 14 |
| Gear levels | 3 | 5 | 5 | 5 |
| Efficiency | 71% | 58% | 58% | 58% |
Design drawing:
Product display:
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Stepper motors are widely used among all industries.
Packaging and Shipping information:
Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
