Product Details
Place of Origin: China
Brand Name: Vic-Tech
Certification: RoHS
Model Number: SM15-818G-8D
Payment & Shipping Terms
Minimum Order Quantity: 1Unit
Price: $4~$9/Unit
Packaging Details: The product is packed with pearl cotton, and the outside is in a carton. Most bulk products use pallets for easy transportation and product protection
Delivery Time: 10~20 days after the sample is paid
Payment Terms: T/T, Paypal, Credit card
Supply Ability: 10000 pc/Month
Motor Type: |
15 Mm Motor+worm Gearbox |
Motor Diameter: |
15 Mm |
Gearbox Type: |
Worm Gearbox |
Coil Resistance: |
10Ω/31Ω(single Motor) |
Gearbox Ratio: |
1:21 To 1:1030 |
Rated Voltage: |
5V DC Or As Request |
Motor Type: |
15 Mm Motor+worm Gearbox |
Motor Diameter: |
15 Mm |
Gearbox Type: |
Worm Gearbox |
Coil Resistance: |
10Ω/31Ω(single Motor) |
Gearbox Ratio: |
1:21 To 1:1030 |
Rated Voltage: |
5V DC Or As Request |

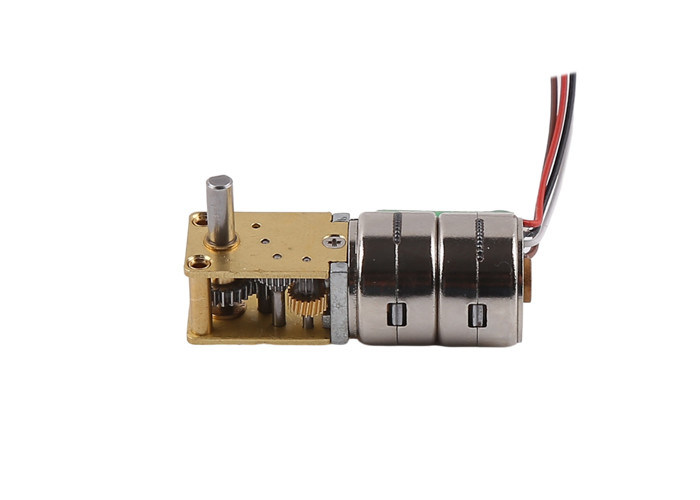

High torque multiple gear ratio double stacked 15mm stepper motor with worm gearbox
This is 15mm diameter double stacked motor with worm gearbox.
This motor is a double stacked motor.
It is two 15mm stepper motors combined together to provide motor torque.
The efficiency of this motor is about 80%, and a double stacked motor has about 1.8 times of torque compared to a single 15mm motor.
We have different gear ratios for you to choose, from 21:1 to 1030:1
Parameters:
| PRODUCT NAME | 15 mm worm geared stepper motor |
| MODEL | SM15(double)-818G-8D |
| RESISTENCE | 31Ω±7% (optional 20 15 10 ohm) |
| OPERATING TEMPERATURE RANGE | -0~+55 ℃ |
| GEAR RATIO | 21:1 42:1 118:1 236:1 302:1 603:1 875:1 1030:1 |
| OEM & ODM SERVICE | AVAILABLE |
| Step angle | 18 degrees/gear ratio |
| Coil resistance | 5V DC |
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
