Product Details
Place of Origin: China
Brand Name: V-motor
Certification: RoHS
Model Number: 42HS40-PG
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: US$20~50
Packaging Details: Out packing use paper box, large quantity can use pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 100000/month
Step Angle: |
1.8 Degree |
Gear Ratio: |
1:3~1:720 |
Gear Type: |
Planetary Gearbox |
Motor Type: |
Hybrid Stepper Motor |
Phase: |
2 Phase |
Voltage: |
12VDC~48VDC |
Step Angle: |
1.8 Degree |
Gear Ratio: |
1:3~1:720 |
Gear Type: |
Planetary Gearbox |
Motor Type: |
Hybrid Stepper Motor |
Phase: |
2 Phase |
Voltage: |
12VDC~48VDC |

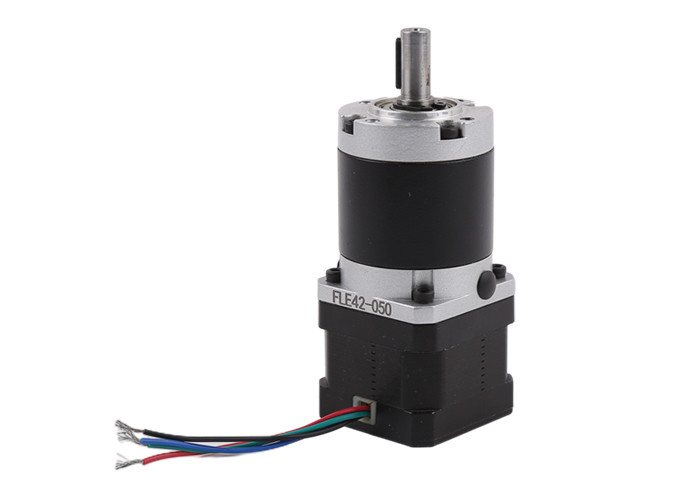

This is a 42mm square hybrid stepper motor (NEMA 17) mount with a planetary gearbox.
There are several gearbox ratio for you to choose, gear ratio from 3.71 to 719.98
Base on different gear stage, gearbox will have different length and efficiency.
1 stage: 32.2 mm length, 90% efficiency
2 stages: 40.0 mm length, 80% efficiency
3 stages: 50.0 mm length, 72% efficiency
4 stages: 57.0 mm length, 63% efficiency
Please let us know the following Parameter if we are lucky to attract your interests:
1. Voltage & Frequency
2. Number of revolutions and direction of rotation
3. Type of output shaft ( Our standard shaft our your customized shaft)
4. Torque on output shaft
5. Length of lead wire if you have requirements
Motor parameter data sheet
| Motor type | Hybrid stepper motor+planetary gearbox |
| Model | 42BYG-36PLF |
| Excitation mode | 2-2 bipolar |
| Output shaft | Φ8D7 |
| Gearbox type | Planetary gearbox |
| Stage & gear ratio |
1 stage 3.71 5.18 2 stages 13.76 19.22 26.83 3 stages 51.06 71.30 99.55 138.99 4 stages 189.45 264.52 369.32 516.66 719.98
|
| Output torque | Motor’s torque*gear ratio*gearbox efficiency |
| Current range | 0.4~1.7A/phase |
| Step angle | 0.9°/1.8° optional |
1. Sample order lead-time is about 15 days,mass quantity order lead -time is 25-30 days.
2. We can accept payment via Mastercard, Visa, e-Checking, PAYLATER, T/T and Paypal.
3. We can provide you professional technical support and our products quality guarantee is 12 months.
4. We accept products customize.including the motor parameter,lead wire type,out shaft etc.
5. For this type motor, we can adding encoder on the motor wear cap.
