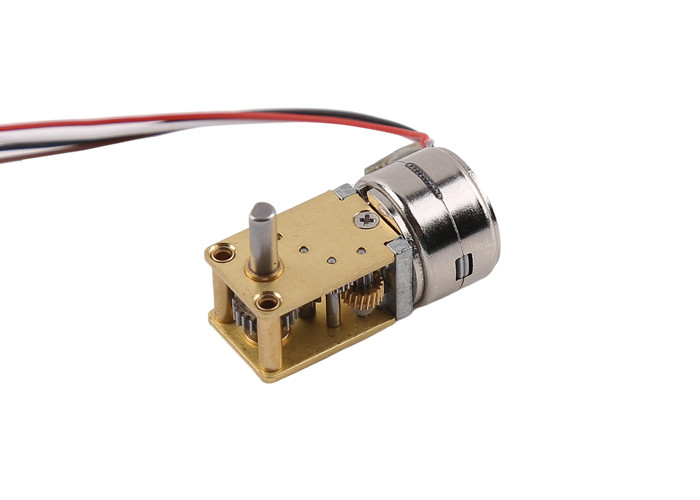

2 Phase 15mm Micro Precision Geared Stepper Motor With Worm Gearbox
2 Phase 15mm Micro Precision Geared Stepper Motor With Worm Gearbox
2 Phase 15mm Micro Precision Geared Stepper Motor With Worm Gearbox
2 Phase 15mm Micro Precision Geared Stepper Motor With Worm Gearbox
2 Phase 15mm Micro Precision Geared Stepper Motor With Worm Gearbox
2 Phase 15mm Micro Precision Geared Stepper Motor With Worm Gearbox

2 Phase 15mm Micro Precision Geared Stepper Motor With Worm Gearbox

Product Details

Place of Origin: China

Brand Name: V-motor

Certification: RoHS

Model Number: SM15-1812 worm gear box

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: US$3~8

Packaging Details: Samples are packaged in small cartons and pearl cotton, and bulk products are in blister boxes and cartons, and when necessary, use pallets (when the quantity is large).

Delivery Time: 15 days

Payment Terms: T/T, L/C

Supply Ability: 100000/month

Get Best Price

Product Details

Product Description
Highlight:

15mm Micro Geared Motor

,

2 Phase Micro Geared Motor

,

15mm Geared Stepper Motor

Type:
Permanent Magnet Geared Stepper Motor
Phase:
2-2
Current / Phase:
0.4A
Step Angle(degrees):
18/i Degrees（i Gear Ratio）
Rated Voltage:
5V Or As Request
Application:
Household Appliances,3D Printer Medical Machine CNC Machine Robot
Gear Ratio:
21~1030:1
Gear Type:
Worm Gear And Spur Gear
Type:
Permanent Magnet Geared Stepper Motor
Phase:
2-2
Current / Phase:
0.4A
Step Angle(degrees):
18/i Degrees（i Gear Ratio）
Rated Voltage:
5V Or As Request
Application:
Household Appliances,3D Printer Medical Machine CNC Machine Robot
Gear Ratio:
21~1030:1
Gear Type:
Worm Gear And Spur Gear
2 Phase 15mm Micro Precision Geared Stepper Motor With Worm Gearbox

15mm stepper motor attached with 1812 worm gearbox



This series of geared motors is assembled with SM15 stepper motor and 1812 precision metal worm gear reducer.

The overall volume of the geared motor is small, the selection range of the reduction ratio is wide, and the angle between the output shaft and the motor bearing is 90 degrees, which is suitable for the installation requirements of special occasions.

The basic step angle of the motor is 18 degrees, that is, 20 steps per revolution, plus the deceleration effect of the gearbox, the final motor angle resolution can reach 0.018~0.9 degrees, which can be used in various precise control places.

The selectable speed ratios are 1:21 1:42 1:118 1:236 1:302 1:399 1:515 1:603 1:798 1:1030, different speed ratios will produce different torque and speed, customers Can be selected according to different torque and speed requirements. Special ratios can also be customized, if you need, please feel free to contact us.



SPECIAL IMPORTANT REMINDER

Due to the use of the worm gear structure, the entire motor has a compact structure, but the efficiency of this structure is relatively low, so special attention should be paid when selecting it.





SM15mm-1812 worm gearbox stepper main parameters:



PRODUCT NAME 15 mm worm geared stepper motor
MODEL SM15-1812 serial
MOTOR STEP ANGLE 18°
RESISTENCE 31Ω±7% (optional 20 15 10 ohm)
OPERATING TEMPERATURE RANGE -0~+55 ℃
GEAR RATIO 1:21~1:1030
OEM & ODM SERVICE AVAILABLE
EFFICIENCY 10~20%
SPEED RANGE Motor(0~3000RPM) Out shaft(0~150rpm)





SM15-1812 Worm gear stepper motor out drawing:



2 Phase 15mm Micro Precision Geared Stepper Motor With Worm Gearbox 0





SM15-1812 Worm gear stepper motor display:





2 Phase 15mm Micro Precision Geared Stepper Motor With Worm Gearbox 1





2 Phase 15mm Micro Precision Geared Stepper Motor With Worm Gearbox 2
