Product Details
Place of Origin: China
Brand Name: Vic-Tech
Certification: RoHS
Model Number: PM25S-048
Payment & Shipping Terms
Minimum Order Quantity: 1Unit
Price: $4~$8/Unit
Packaging Details: Samples are packed with paper box, and mass production products are packed with standard corrugated carton.
Delivery Time: 10~20 days after the sample is paid
Payment Terms: T/T, Paypal, Credit card
Supply Ability: 100000 pc/Month
Motor Type: |
Permanent Magnet Motor+gearbox |
Motor Diameter: |
25mm |
Gearbox Ratio: |
15:1 |
Step Angle: |
7.5°/15 |
Phase No.: |
2 Phases |
Driving Mode: |
Bipolar |
Motor Type: |
Permanent Magnet Motor+gearbox |
Motor Diameter: |
25mm |
Gearbox Ratio: |
15:1 |
Step Angle: |
7.5°/15 |
Phase No.: |
2 Phases |
Driving Mode: |
Bipolar |

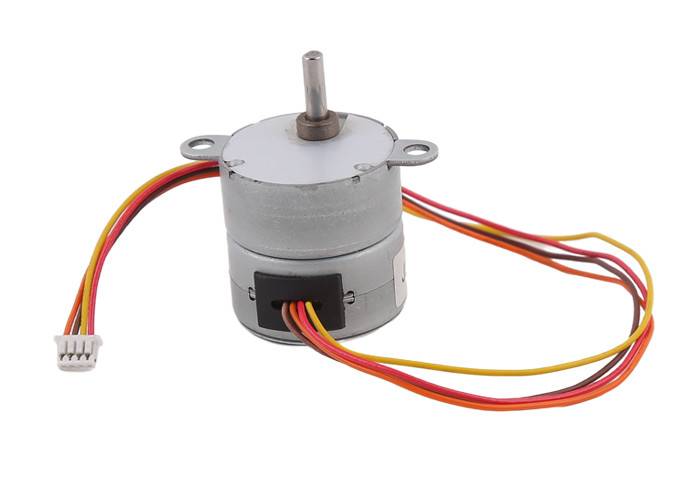

High torque 4 cables 2 phases 25mm gearbox reducer stepper motor
Description:
PM25S-048 motor is a 25mm diameter motor with a gearbox on top.
For this motor, its gear ratio is 15:1.
We only have other gear ratios for to you choose, and it depends on your project requirement.
Step angle of single motor is 7.5 degrees, and it takes 48 steps to rotate one turn.
This is a bipolar motor with 2 phase and 4 wires.
You can adjust motor’s resistance, cable length and connector type.
Motor Parameters:
| Motor type | PM motor+gearbox |
| Model No. | PM25S-048 |
| Step angle | 7.5°/15 |
| Gear ratio | 15 |
| Phase No. | 2 |
| Driving mode | Bipolar |
| Resistance | 20Ω/phase |
| Voltage | 6~9V DC |
| Phase current | 400 mA/phase |
Design drawing:
Product display:
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Stepper motors are widely used among all industries.
