Product Details
Place of Origin: China
Brand Name: Vic-Tech
Certification: RoHS
Model Number: 20BY45-20G
Payment & Shipping Terms
Minimum Order Quantity: 1Unit
Price: $3.5~$7/Unit
Packaging Details: Samples are packed with paper box, and mass production products are packed with standard corrugated carton.
Delivery Time: 10~20 days after the sample is paid
Payment Terms: T/T, Paypal, Credit card
Supply Ability: 100000 pc/Month
Motor Type: |
PM Stepper Motor+gearbox |
Motor Size: |
20mm |
Step Angle: |
18°/gear Ratio |
Gear Ratio: |
10:1 To 488:1 |
Resistance: |
10Ω/phase |
Driving Mode: |
Bipolar |
Motor Type: |
PM Stepper Motor+gearbox |
Motor Size: |
20mm |
Step Angle: |
18°/gear Ratio |
Gear Ratio: |
10:1 To 488:1 |
Resistance: |
10Ω/phase |
Driving Mode: |
Bipolar |
Various gear ratio 20mm 18° step angle stepper motor with gearbox

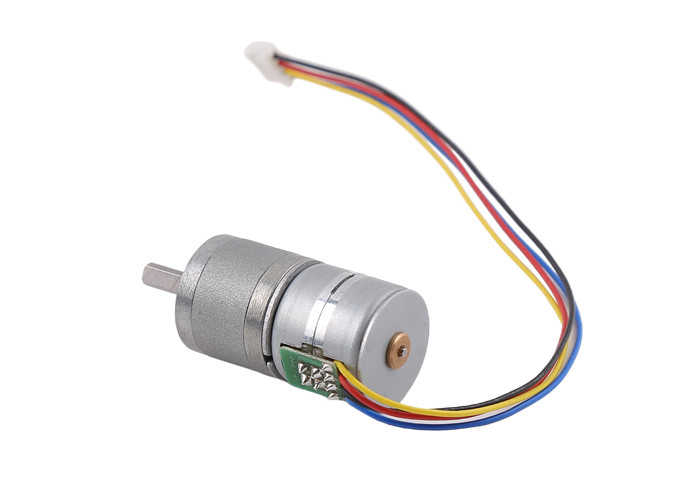

This is a 20mm stepper motor fitted with a gearbox.
The stepping angle of a single 20mm motor is 18°/step.
With the gearbox, the step angle of the motor is smaller and the torque of the motor is much improved. (depending on gear ratio)
Customers can choose different gear ratios according to their own requirements.
In addition, other parameters such as motor resistance/cable length/connector type, output shaft length, shape, etc. can be customized.
Motor starting gear: M 0.25 Z14 L 1.5, the height from the upper end face of the shaft to the motor end cover is 3.8~4.2
The output torque is the motor torque and the reduction ratio multiplied by the efficiency. The efficiency is related to the number of gear stages. The reference is as follows: 3/4 stage, 85%, and each subsequent stage is multiplied by a 0.9
| Model No. | 20BY45-20G |
| Phase No. | 2 phases (bipolar) |
| Rated voltage | 5~8 V DC |
| Resistance | 10Ω±10%/phase (adjustable) |
| Step angle | 18°/gear ratio |
| Excitation method | 2-2 phase |
| Output shaft | 4mm diameter D3.5 shaft |
| Pull out torque | 150mNm(800Hz) |
| Self-locating torque (without excitation) | 50mNm Ref |
| Holding torque | ≥250mNm |
Gearbox Parameters:
| Gearbox levels | Gearbox length L1 (mm) | Gear ratio |
| 3/4 levels | 16 | 10:1/12.5:1/25:1/31.25:1 |
| 5 levels | 17.5 | 50:1/62.5:1/78.1 |
| 6 levels | 19 | 100:1/125:1/156.25:1/195.3:1 |
| 7 levels | 20.5 | 250:1/312.5:1/390.6:1/488:1 |
Design drawing:
Product display:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Stepper motors are widely used among all industries.
