Product Details
Place of Origin: China
Brand Name: Vic-Tech
Certification: RoHS
Model Number: VSM10157
Payment & Shipping Terms
Minimum Order Quantity: 1Unit
Price: $3.5~$7/Unit
Packaging Details: Samples are packed with paper box, and mass production products are packed with standard corrugated carton.
Delivery Time: 10~20 days after the sample is paid
Payment Terms: T/T, Paypal, Credit card
Supply Ability: 100000 pc/Month
Motor Type: |
PM Stepper Motor+ Gearbox |
Motor Size: |
Diameter 10mm |
Step Angle: |
18°/gear Ratio |
Gearbox Type: |
10*12 Gearbox |
Connector Type: |
FPC/4 Pin Connector |
Output Shaft: |
D Shaft/ Lead Screw Shaft |
Motor Type: |
PM Stepper Motor+ Gearbox |
Motor Size: |
Diameter 10mm |
Step Angle: |
18°/gear Ratio |
Gearbox Type: |
10*12 Gearbox |
Connector Type: |
FPC/4 Pin Connector |
Output Shaft: |
D Shaft/ Lead Screw Shaft |
Optional gear ratio 10*12 gearbox 10mm permanent magnet VSM10-816G stepper motor

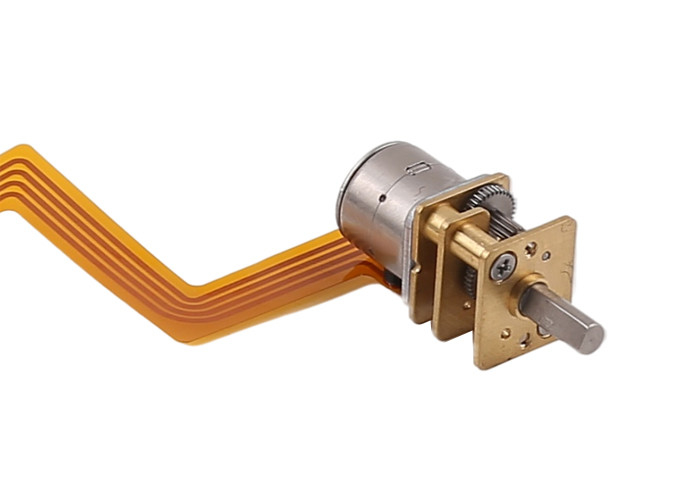

VSM10157 is a 10mm permanent magnet stepper motor with 10*12mm gearbox.
Gearboxes are available in different gear ratios (from 2:1 to 1000:1), customers can choose the gear ratio according to their speed/torque requirements.
Regarding the connector type, the picture is FPC.
Can also do PCB+4 wires+connector, we have different connector spacing, such as 1mm/1.25mm/1.5mm/2mm/2.5mm spacing and so on.
The most commonly used connector is 51021-0400 (1.25mm pitch connector)
| Model No. | VSM10157-10G |
| Motor diameter | 10mm |
| Step angle | 18°/10 |
| Rated voltage | 3.3-5V DC |
| Output shaft | D shaft/M3 lead screw shaft |
| Connector type | fpc/4 pin connector |
| Phase No. | 2 phase |
| Motor resistance | 19Ω/phase |
| Motor type | Bipolar |
| Gear ratio | 2:1 | 5:1 | 10:1 | 15:1 | 20:1 | 30:1 | 36:1 | 50:1 | 63:1 | 67:1 | 89:1 | 100:1 |
| Precise ratio | 2.002 | 4.995 | 9.677 | 14.754 | 20.501 | 29.120 | 36.122 | 51.103 | 63.071 | 66.801 | 89.227 | 99.002 |
| Tooth number | 23 | 20 | 13 | 18 | 15 | 12 | 20 | 20 | 14 | 17 | 14 | 13 |
| Gear levels | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
| Efficiency | 80% | 80% | 80% | 72% | 72% | 72% | 65% | 65% | 65% | 65% | 65% | 65% |
| Gear ratio | 110:1 | 150:1 | 172:1 | 210:1 | 250:1 | 275:1 | 298:1 | 380:1 | 420:1 | 500:1 | 600:1 | 1000:1 |
| Precise ratio | 110.407 | 150.948 | 171.883 | 210.591 | 250.111 | 274.403 | 297.924 | 387.689 | 421.296 | 506.155 | 599.394 | 986.406 |
| Tooth number | 12 | 18 | 13 | 12 | 13 | 12 | 12 | 12 | 12 | 18 | 16 | 12 |
| Gear levels | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 7 | 7 | 7 |
| Efficiency | 59% | 59% | 59% | 59% | 59% | 59% | 59% | 59% | 59% | 47% | 47% | 47% |
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Stepper motors are widely used among all industries.
